Radio open/close control FE3 M
FE3 M
Used with the transmitters of the FS3 series, the FE3 M wireless receiver is a universally applicable motor controller for clockwise and anti-clockwise rotation. It can be implemented as either a one-button two-button motor controller.
Using the higher priority auxiliary inputs (or special wireless functions), it is possible to combine several FE3 M controllers to form group and central control systems. The motor run time can be limited, e.g. to prevent overloading the motor in the event of mechanical jamming.
A convenient, automatic and adjustable closing function prevents e.g. inadvertently leaving a skylight open.
In the case of louver blind controls, the individual louvers can be exactly adjusted or automatically set to a predefined angle on switching off.
Variants for 230V AC motors or 12-24V DC motors
Additional information

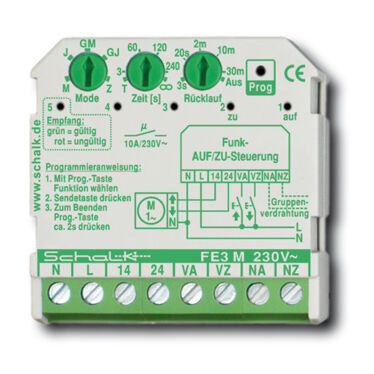

Technical data FE3 M (230V AC)
Type: | FE3 M (230V AC) |
Itemo no.: | FE3M09 |
EAN: | 4046929101318 |
Specifications: | 230V AC, 2 NO contacts, for AC motors |
Dimensions: | 43 x 43 x 18.5mm |

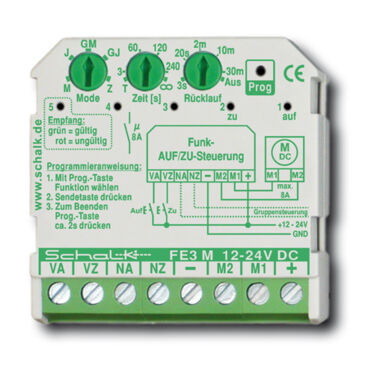

Technical data FE3 M (12-24V DC)
Type: | FE3 M (12-24V DC) |
Item no.: | FE3M0K |
EAN: | 4046929101325 |
Specifications: | 12-24V DC, 2 NO contacts, for DC motors |
Dimensions: | 43 x 43 x 18.5mm |
