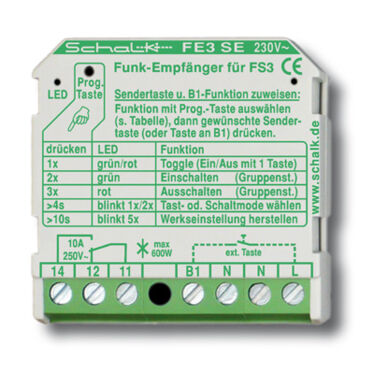

Radio-controlled switch with 1 relay
FE3 SE
With the radio controlled switch FE3 SE, electrical equipment (lamps, dimmers, door openers, etc.) can be controlled using Schalk handheld or flush-mounting radio transmitters in pushbutton or switching mode.
The FE3 SE has a potential-free change-over contact. Due to its low height of 18.5mm, it fits behind almost every flush-mounting insert (e.g. switch or outlet sockets).
The 3 functions (toggle, on, off) can be assigned to any button of the transmitter.
The function "toggle" (alternating on/off) is used for individual control. Using the functions "on" or "off", several radio controlled switches can be controlled simultaneously (group control). The functionality of the input B1 (e.g. for wire-connected pushbutton) is also freely configurable.
The FE3 SE has a potential-free change-over contact. Due to its low height of 18.5mm, it fits behind almost every flush-mounting insert (e.g. switch or outlet sockets).
The 3 functions (toggle, on, off) can be assigned to any button of the transmitter.
The function "toggle" (alternating on/off) is used for individual control. Using the functions "on" or "off", several radio controlled switches can be controlled simultaneously (group control). The functionality of the input B1 (e.g. for wire-connected pushbutton) is also freely configurable.
Also available as mini radio set MFS 1, consisting of FS3 H2 and FE3 SE (230V AC)
Additional information
Technical data FE3 SE (230V AC)
Type: | FE3 SE (230V AC) |
Item no.: | FE3SE9 |
EAN: | 4046929101226 |
Specifications: | 230V AC, 1 W 10A |
Dimensions: | 43 x 43 x 18.5mm |
Technical data FE3 SE (12V UC)
Type: | FE3 SE (12V UC) |
Item no.: | FE3SE2 |
EAN: | 4046929101295 |
Specifications: | 12V UC, 1 W 10A |
Dimensions: | 43 x 43 x 18.5mm |
