Motor group relay for 2 motors (flush mounting)
MGR U2
The motor group relay MGR U2 allows several roller blind or Venetian blind motors to be connected in parallel to a single control. In this way, several drives can be combined easily and cost-efficiently into a jointly operated group without having to use a separate control for each drive.

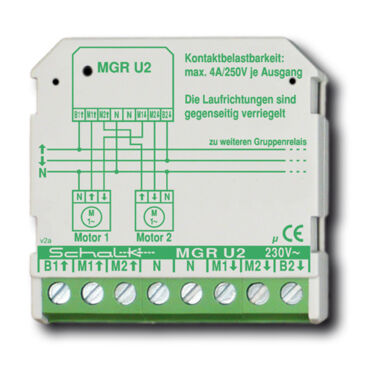

The MGR U2 has two complete OPEN/CLOSE outputs for direct connection of two motors.
In addition, the outputs are mutually interlocked to ensure that only one direction of movement can be switched through to the motors at any time.
The MGR U2 has two complete OPEN/CLOSE outputs for direct connection of two motors.
In addition, the outputs are mutually interlocked to ensure that only one direction of movement can be switched through to the motors at any time.
Additional information
Technical data
Type: | MGR U2 |
Item no.: | MGRU29 |
EAN: | 4046929401050 |
Specifications: | 230V AC, 4 NO 5A |
Dimensions: | 43 x 43 x 18.5 mm |
